3u Rack Mount Access Control Drawer
This 3u Rack Mount Access Control Drawer is perfect to consolidating Mercury PCB Cards into 19″ Equipment cabinets. Each drawer allows for the direct mounting onto PCB Mounts for a quantity of 4 Mercury PCB’s

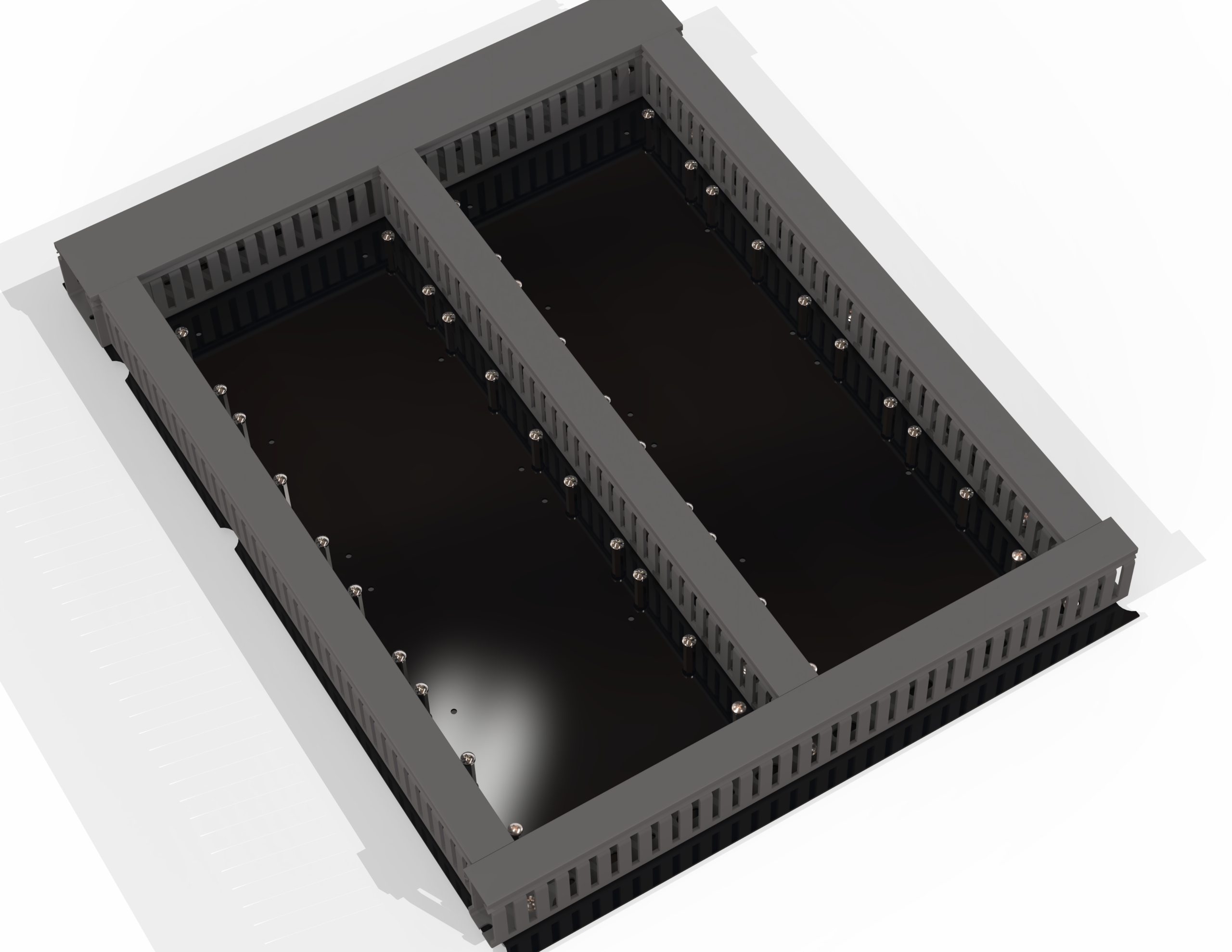

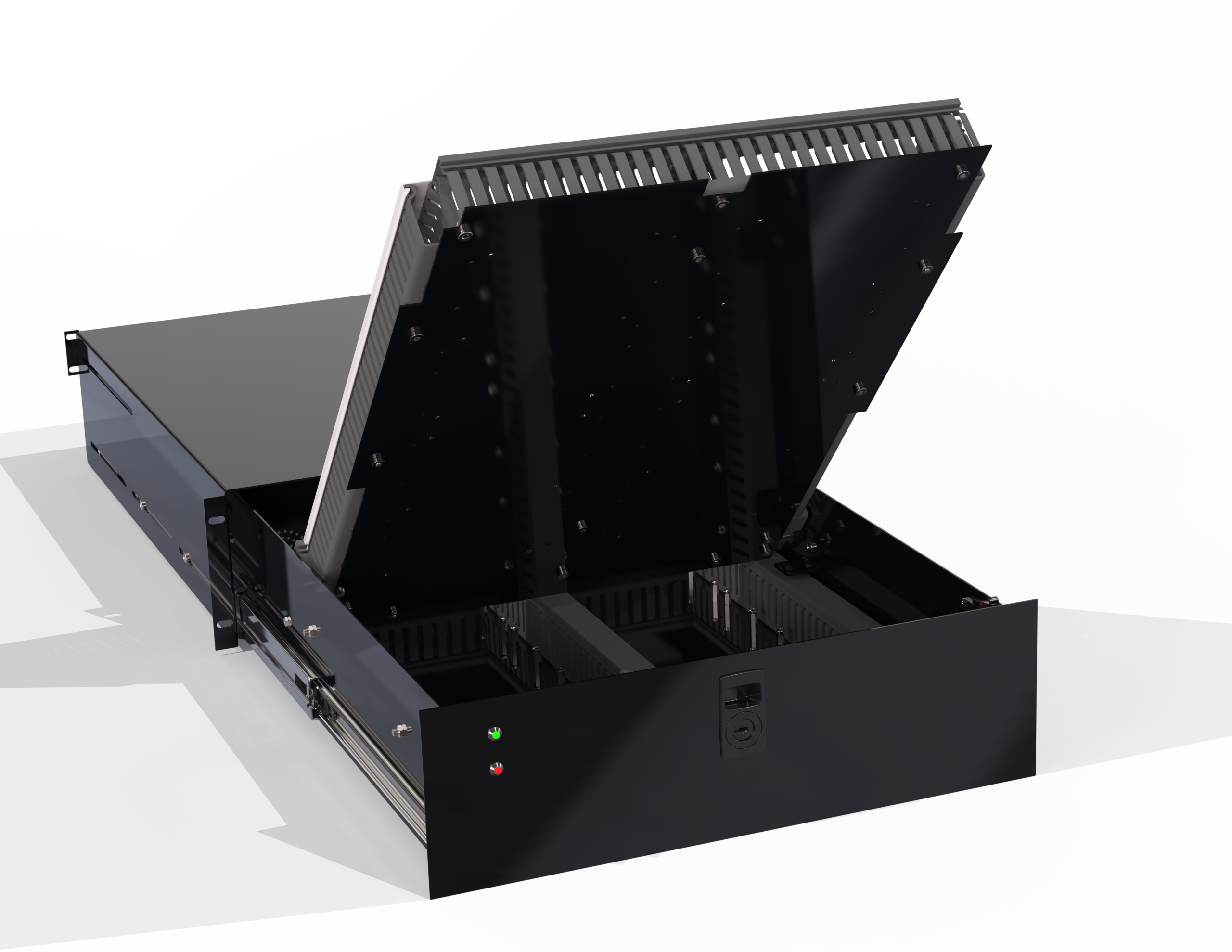

An optional additional tray can be mounted to allow for an additional 4 PCB’s. (ACCESS-3U-ADDTRAY)

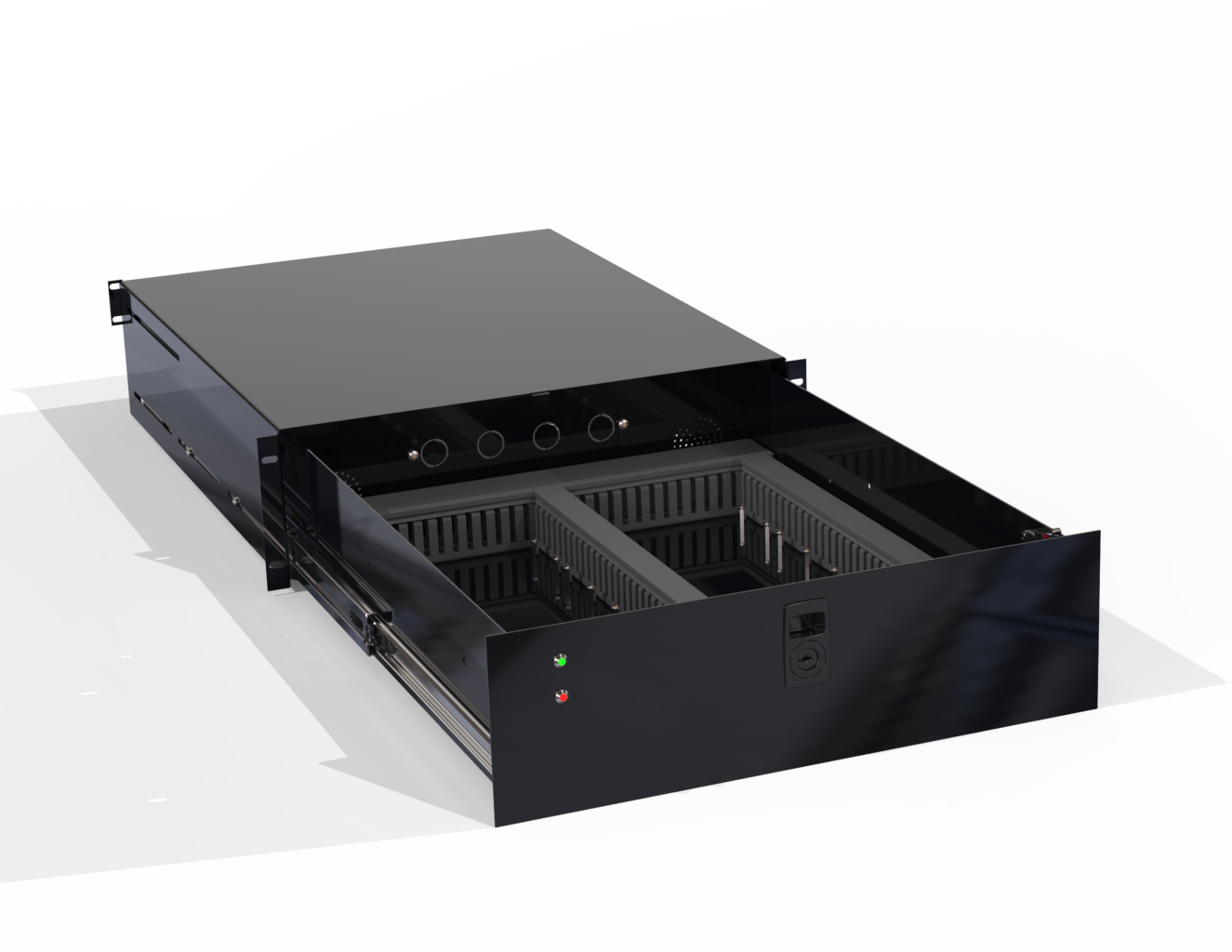

The Access Control Drawer comes complete fitted with Slotted trunking positioned around the whole base to allow for easy cable management, a microswitch, and 2 x LED indicators (1 x Green & 1 x Red) and the PCB Mounts already in place to save engineers time on site. A cable entry plate is included with 8 x 25mm Knockouts.
The LED indicators allow you to connect to outputs on the boards to show Power / Fault.

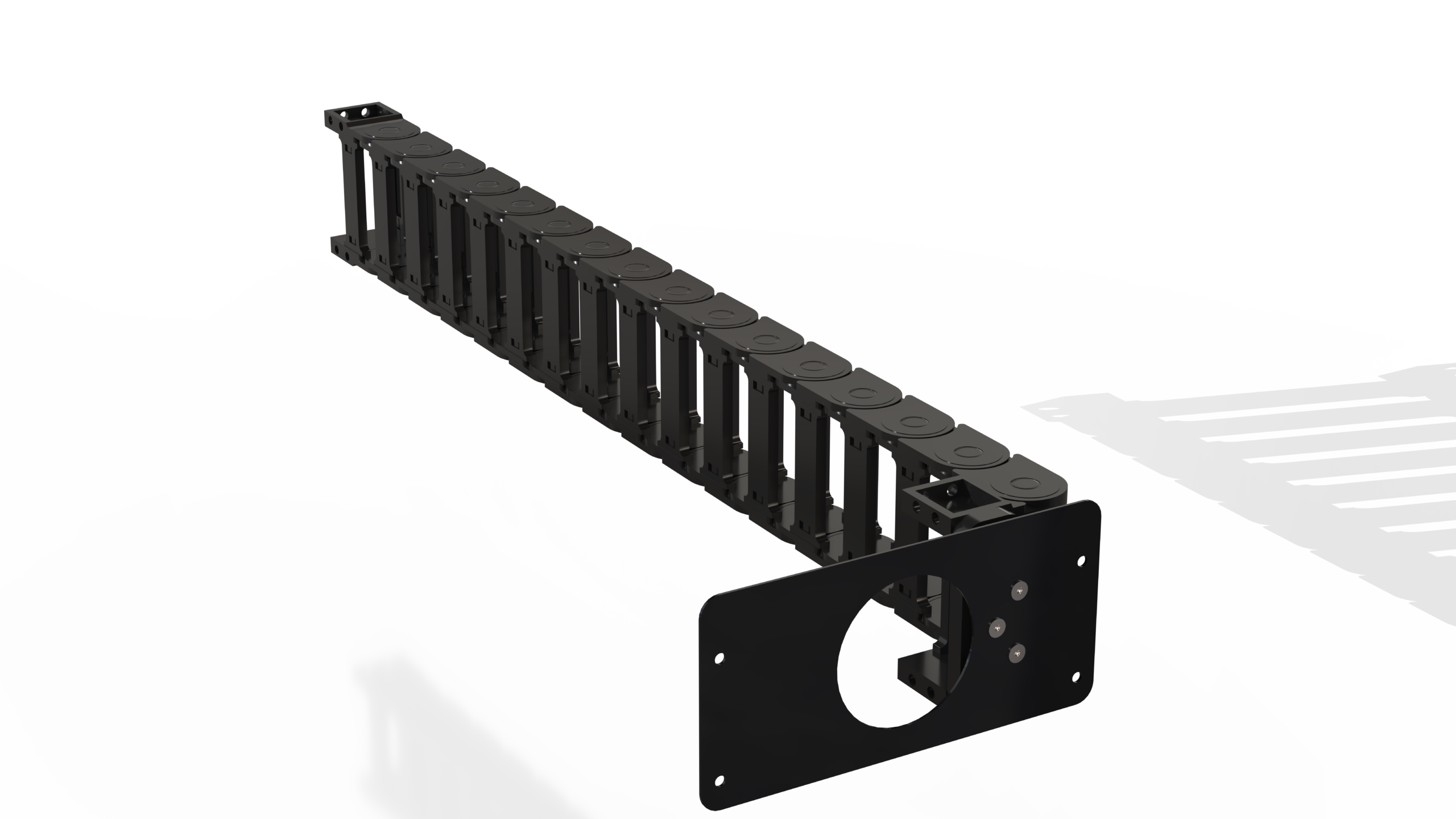

An Optional 75mm Cable entry plate is available and come complete with 1m of flexible cable track to aid with cable management and secure cables whilst drawer is being opened and closed.

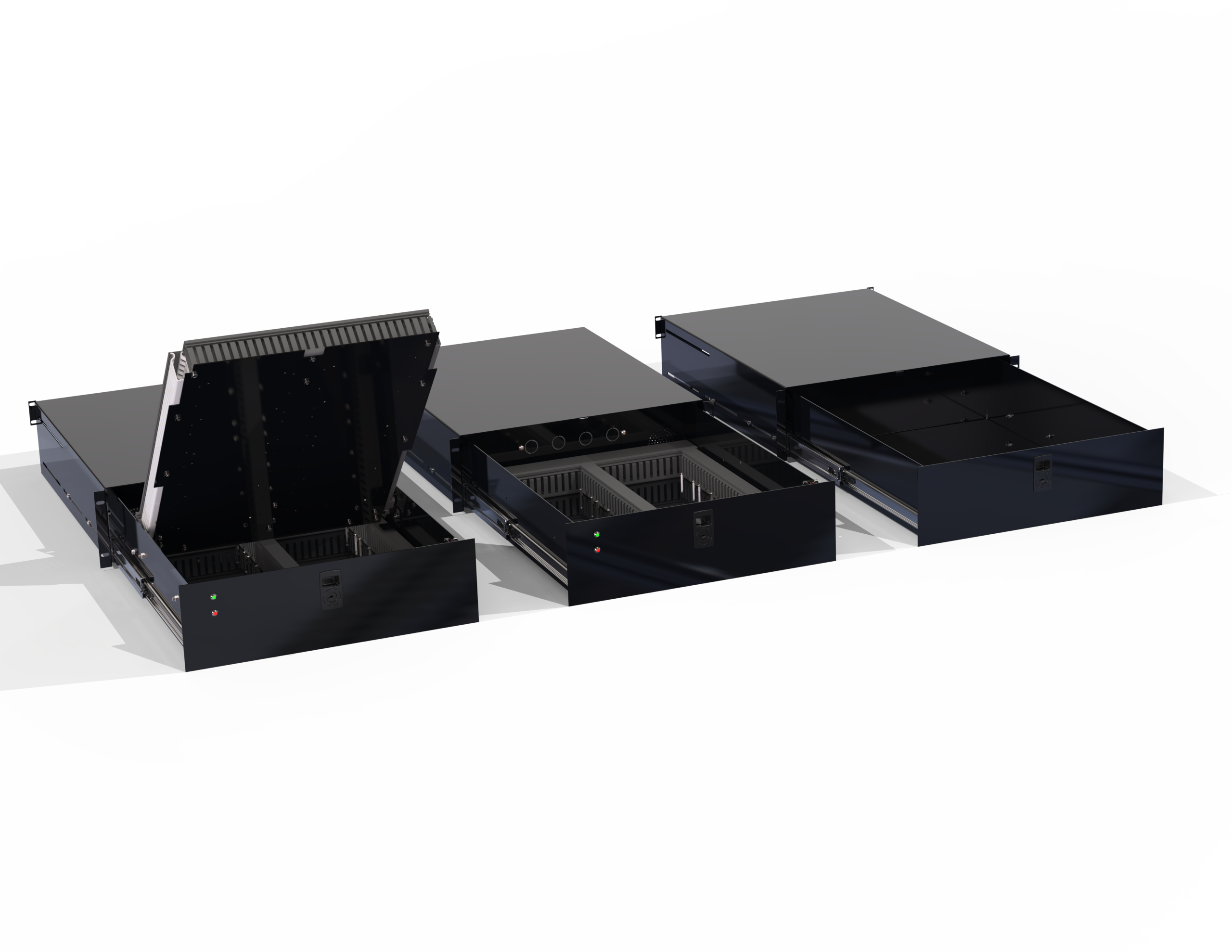

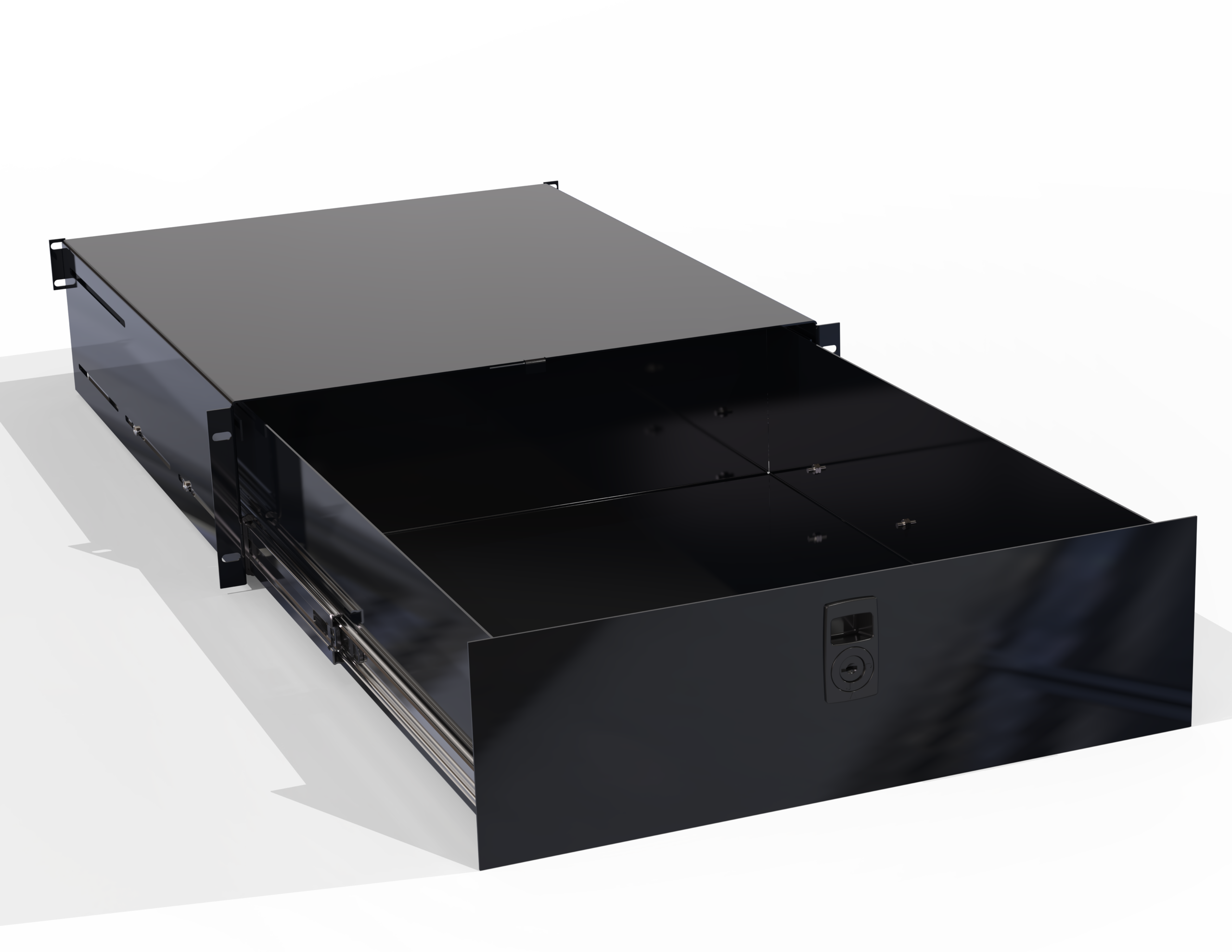

All drawers are keyed alike and an empty drawer (ACCESS-3U-DRAWER-EMPTY) is also available for document / spares storage with the same Keyed alike locks allowing for a complete system for all your requirements.
The whole Drawer slides gracefully to allow access and additional extendable arms allow for both front and rear mounting of the unit.
